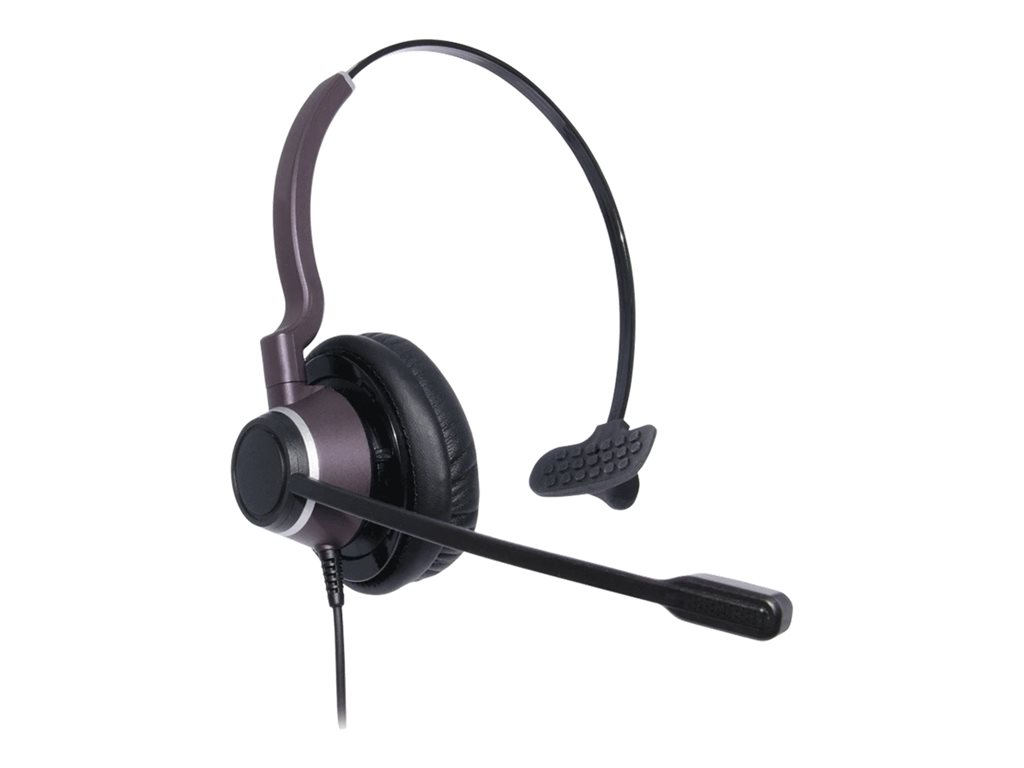

JPL Telecom - JPL Telecom JPL-CONNECT-1
Headset - on-ear - wired - Quick Disconnect - TAA Compliant
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | JPL Telecom JPL-CONNECT-1 - headset - Quick Disconnect - TAA Compliant |
| Product Type | Headset - wired - Quick Disconnect |
| Headphones Form Factor | On-ear monaural |
| Connectivity Technology | Wired |
| Sound Output Mode | Mono |
| Audio Specifications | Frequency Response 100 - 6800 Hz - Sensitivity 93 dB +/- 3dB |
| Impedance | 150 ohm |
| Max Input Power | 100 mW |
| Microphone | Boom |
| Microphone Operation Mode | Bi-directional |
| Microphone Noise Canceling | Yes |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Headset - wired - Quick Disconnect |
| Weight | 2.19 oz |
| Earpad Material | Leatherette |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - replace or repair - 2 years |
| Miscellaneous | |
| TAA Compliant | Yes |

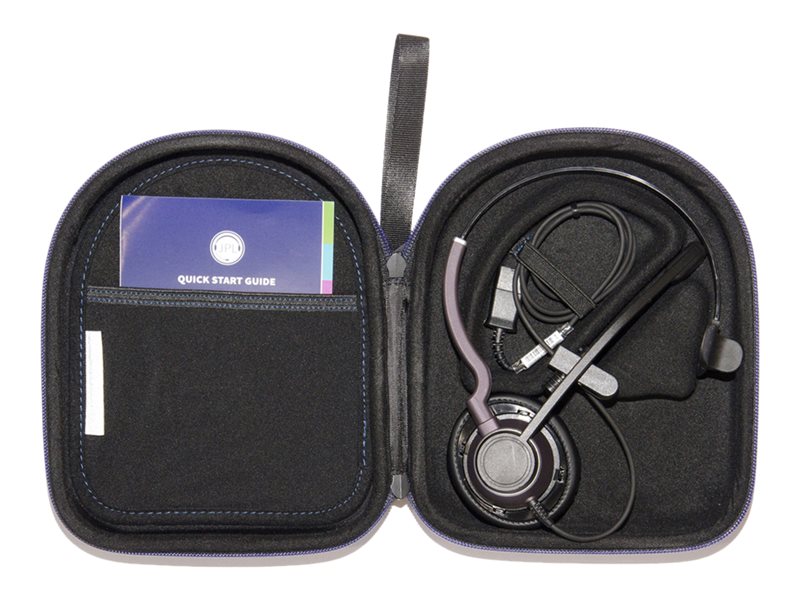

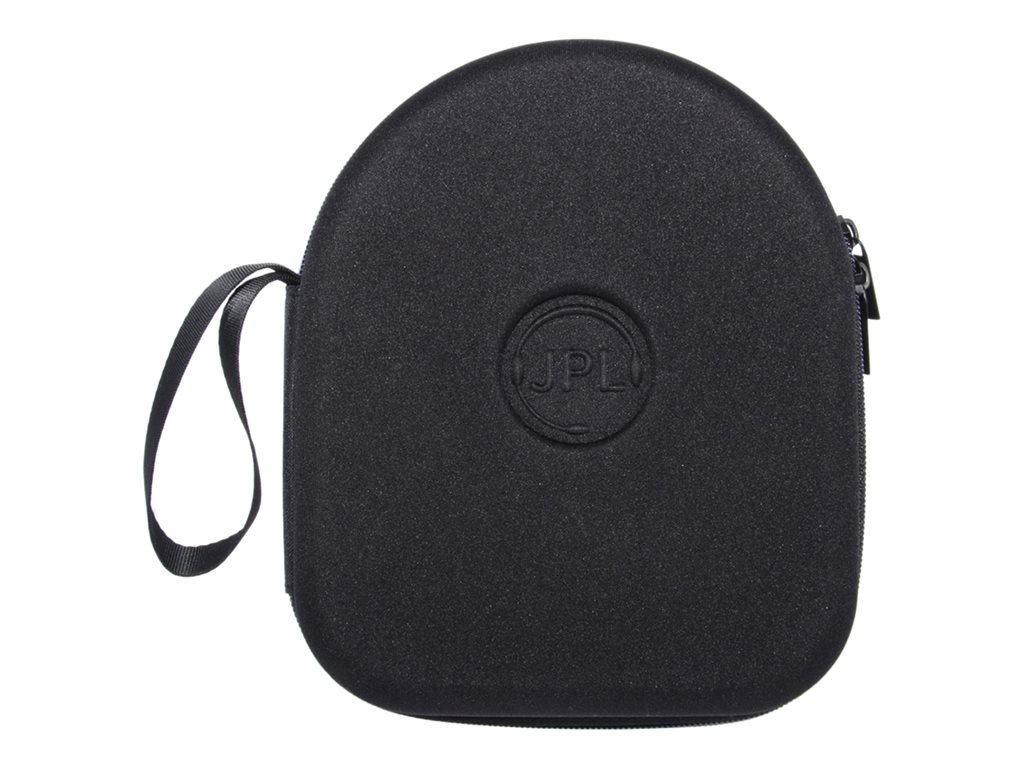

| Included Accessories | Carrying case, 50 mm ear cushion (leatherette), hanging hook |
| Cable Details | Headset cable |
| Compliant Standards | UKCA, FCC, EAC, RoHS, REACH, Plug and Play |
| Power | |
| Voltage Provided | DC 3 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Audio Output | |
| Headphones Form Factor | On-ear monaural |
| Connectivity Technology | Wired |
| Sound Output Mode | Mono |
| Frequency Response | 100 - 6800 Hz |
| Max Input Power | 100 mW |
| Sensitivity | 93 dB +/- 3dB |
| Impedance | 150 ohm |
| Adjustable Headband | Yes |
| Connections | |
| Connector Type | Headset (Quick Disconnect) |
| Microphone | |
| Type | Boom |
| Form Factor | Headset microphone |
| Microphone Operation Mode | Bi-directional |
| Sensitivity | -32 dB |
| Sensitivity Margin | +/- 3dB |
| Impedance | 2.2 kOhm |
| Frequency Response | 50 - 20000 Hz |
| Signal-To-Noise Ratio | 58 dB |
| Noise Canceling | Yes |
| Noise Canceling Technology | Surround Shield |
