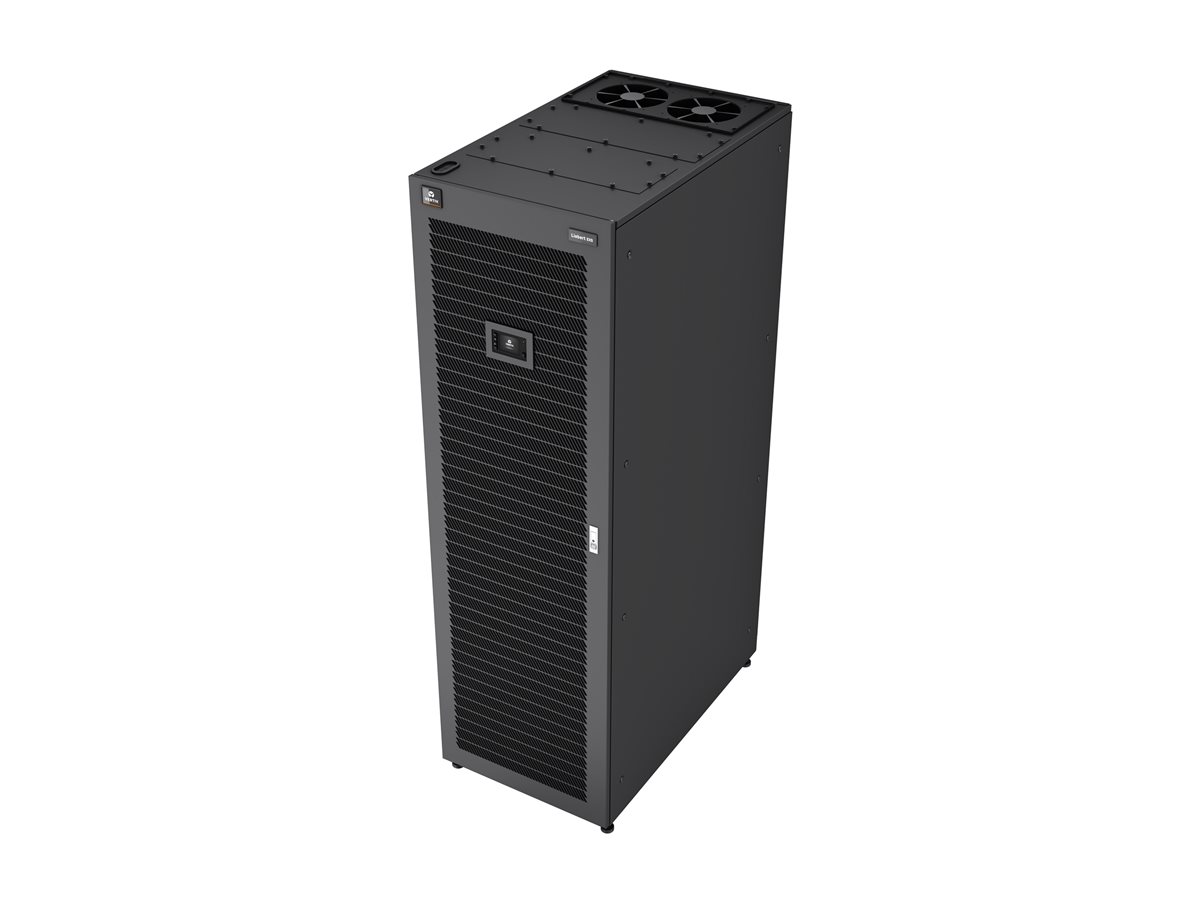

Vertiv - Vertiv Liebert EXS V-Model EXSV-15KTN
UPS - AC 208/220 V - 15 kW - 15000 VA - 3-phase
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Vertiv Liebert EXS V-Model EXSV-15KTN - UPS - 15 kW - 15000 VA |
| Device Type | UPS - external |
| Input Wiring | 3-phase |
| Input Voltage | AC 208/220 V |
| Output Voltage | AC 208/220 V |
| Power Capacity | 15 kW / 15000 VA |
| Input Connectors | Hardwire 5-wire |
| Run Time (Up To) | 15 min at full load |
| Included Accessories | IS-Unity DP communication card |
| Dimensions (WxDxH) | 23.6 in x 39.4 in x 78.7 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | IS-Unity DP communication card |
| Features | Top fan cutout, built-in maintenance bypass, double conversion |
| Compliant Standards | RoHS, WEEE, Energy Star 2.0 |
| Environmental Parameters | |
| Max Operating Temperature | 104 °F |
| Battery | |
| Run Time (Up To) | 32 min at half load |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 208/220 V |
| Input Wiring | 3-phase |
| Input Connectors | Hardwire 5-wire |
| Output Voltage | AC 208/220 V |
| Power Capacity | 15 kW / 15000 VA |
| Efficiency | 93.4% |
| Power Factor (PF) | 1.0 |
| Dimensions & Weight | |
| Width | 23.6 in |
| Depth | 39.4 in |
| Height | 78.7 in |
