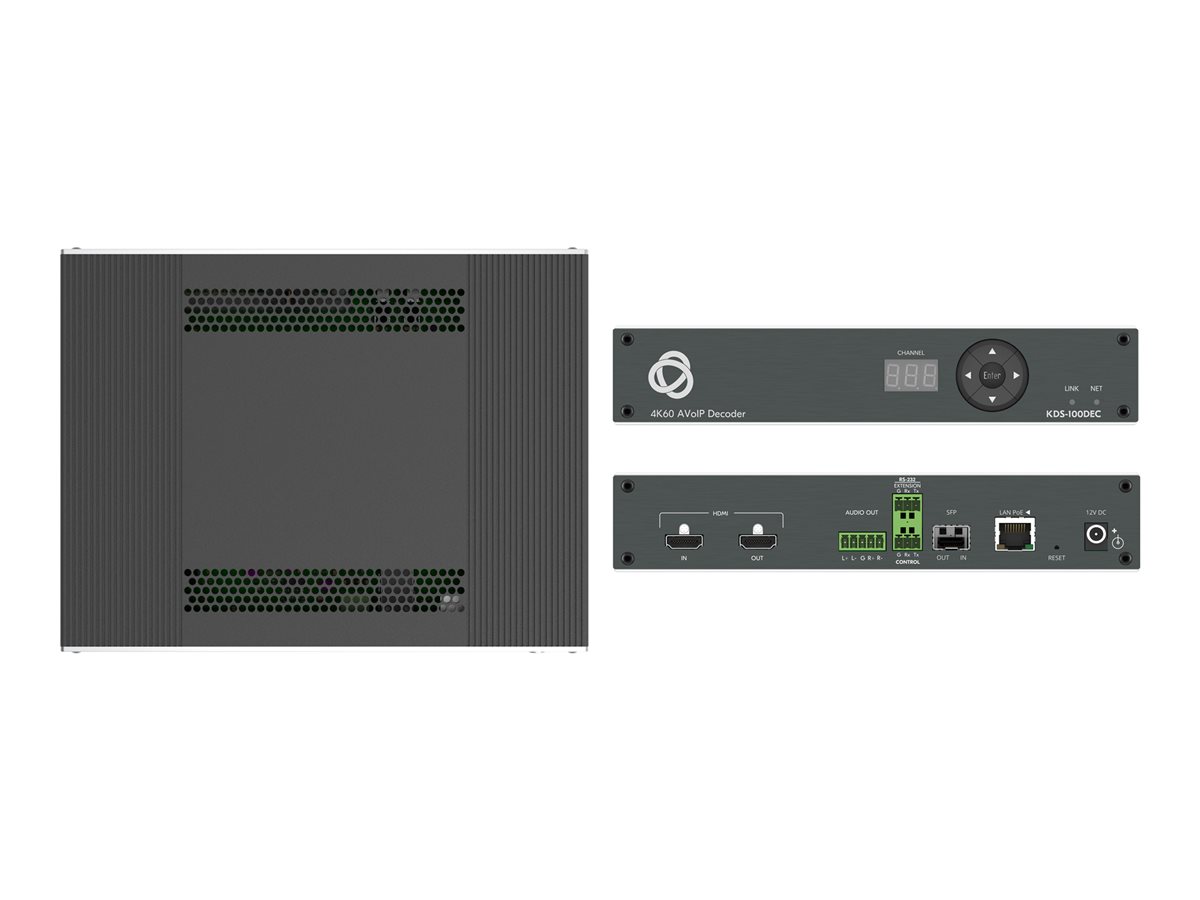

Kramer Electronics - Kramer KDS-100DEC
Audio/video over IP decoder
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Kramer KDS-100DEC audio/video over IP decoder |
| Type | Audio/video over IP decoder |
| Dimensions (WxDxH) | 8.5 in - 6.4 in - 1.7 in |
| Weight | 31.74 oz |
| Manufacturer Warranty | 7 years |
| General | |
| Type | Audio/video over IP decoder |
| Width | 8.5 in |
| Depth | 6.4 in |
| Height | 1.7 in |
| Weight | 31.74 oz |
| Manufacturer Warranty | |
| Warranty | 7 years |
| Power | |
| Power Consumption | 13.6 Watt |
| Low Voltage Power | DC 12 V / PoE Plus |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13.6 in |
| Shipping Depth | 6.5 in |
| Shipping Height | 2 in |
| Shipping Weight | 2.87 lbs |
| Terminals | |
| Terminals | (1) x HDMI input - 19 pin HDMI Type A ¦ (1) x HDMI output - 19 pin HDMI Type A ¦ (1) x balanced audio input - 5-pin terminal block ¦ (1) x balanced audio output - 5-pin terminal block ¦ (1) x RS-232 - 3-pin terminal block ¦ (1) x serial control - 3-pin terminal block ¦ (1) x network - SFP ¦ (1) x network - RJ-45 - PoE+ |
| Studio & Production Equipment | |
| Features | CEC device control, IEEE 802.1X support, HTTPS support, IGMPv2, POE+ support, UDP support, 4K60 4:4:4 signal support, MPEG-TS support, multicast support, H.264 codec support, H.265 codec support |
