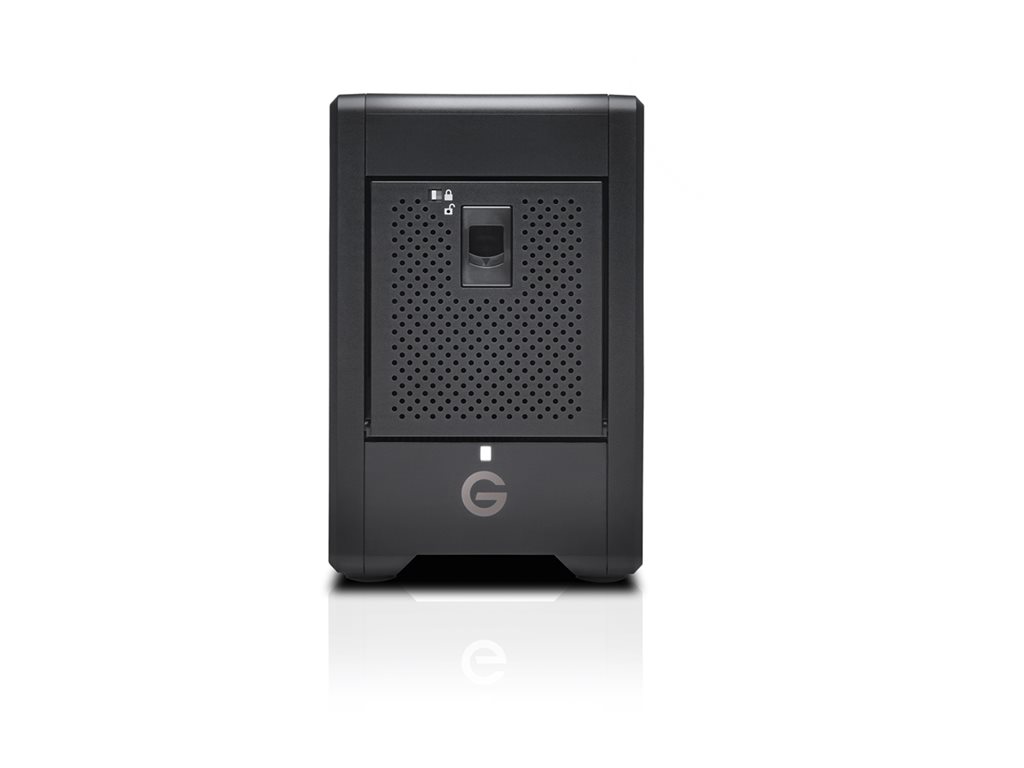

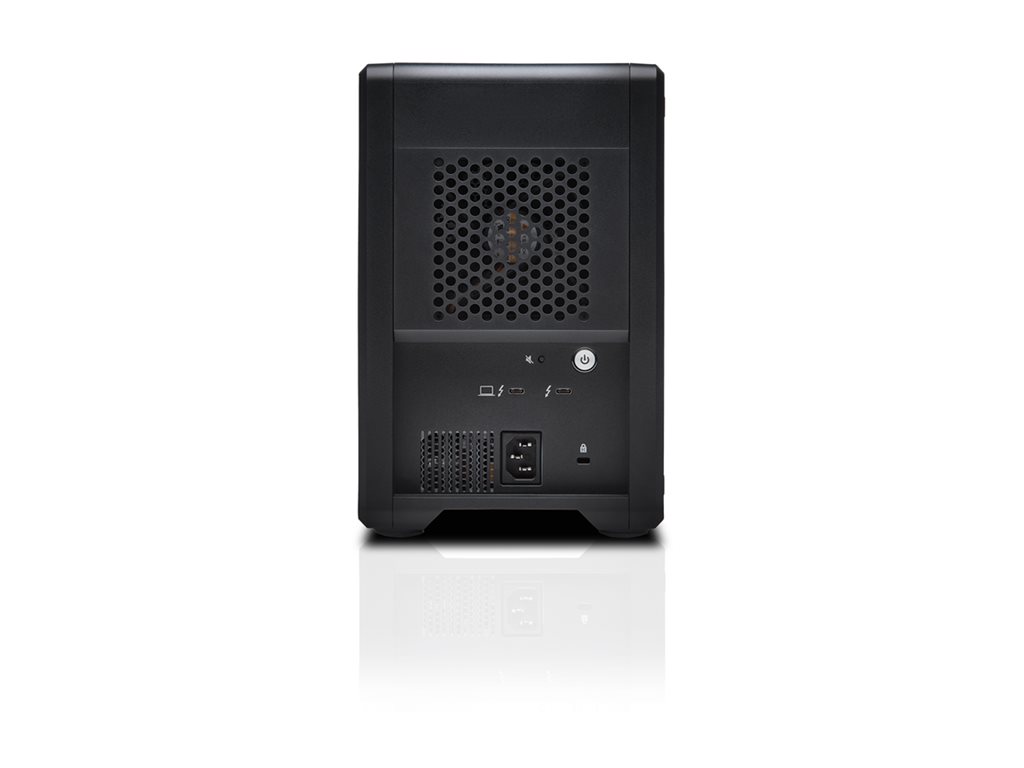

Western Digital - G-RAID SHUTTLE 4
Hard drive array - 104 TB - 4 bays - HDD 4 - Thunderbolt 3 (external)
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | G-RAID SHUTTLE 4 - hard drive array |
| Device Type | Hard drive array |
| Total Array Capacity | 104 TB |
| Interface | Thunderbolt 3 |
| Installed Devices / Modules Qty | 4 (installed) / 4 (max) |
| Localization | North America |
| Storage Controller | RAID RAID 0, 1, 5, 10, JBOD |
| Hard Drive | 4 HDD LED power indicator, LED status indicator, RAID 5 - factory configured, Apple Time Machine compatible, Enterprise, built-in handle |
| OS Required | Apple MacOS 10.11 or later, Windows 10 or later |
| Power | AC 100-240 V 50 - 60 Hz |
| Dimensions (WxDxH) | 6.9 in x 9.8 in x 10.5 in |
| Weight | 16.49 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Hard drive array |
| Localization | North America |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 0 (free) x internal |
| Interfaces | 2 x Thunderbolt 3 - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Features | Kensington security slot, mute button |
| Cables Included | 1 x Thunderbolt 3 cable |
| Compliant Standards | FCC-ICES, RCM, BIS, VCCI, KC, EAC, SABER, LoA, BSMI, UAE, UKCA |
| Included Accessories | Power cable |
| Storage | |
| Total Array Capacity | 104 TB |
| HDD Array External Interface | Thunderbolt 3 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V 50 - 60 Hz |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Storage Controller | |
| Type | RAID |
| Data Transfer Rate | 850 MBps |
| Max Storage Devices Qty | 4 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, JBOD |
| System Requirements | |
| OS Required | Apple MacOS 10.11 or later, Windows 10 or later |
| Hard Drive | |
| Type | HDD |
| Capacity | 4 |
| Spindle Speed | 7200 rpm |
| Features | LED power indicator, LED status indicator, RAID 5 - factory configured, Apple Time Machine compatible, Enterprise, built-in handle |
| Dimensions & Weight | |
| Width | 6.9 in |
| Depth | 9.8 in |
| Height | 10.5 in |
| Weight | 16.49 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11.6 in |
| Shipping Depth | 13.6 in |
| Shipping Height | 13.6 in |
| Chassis | |
| Installed Devices / Modules Qty | 4 |
| Supported Devices / Modules Qty | 4 |
