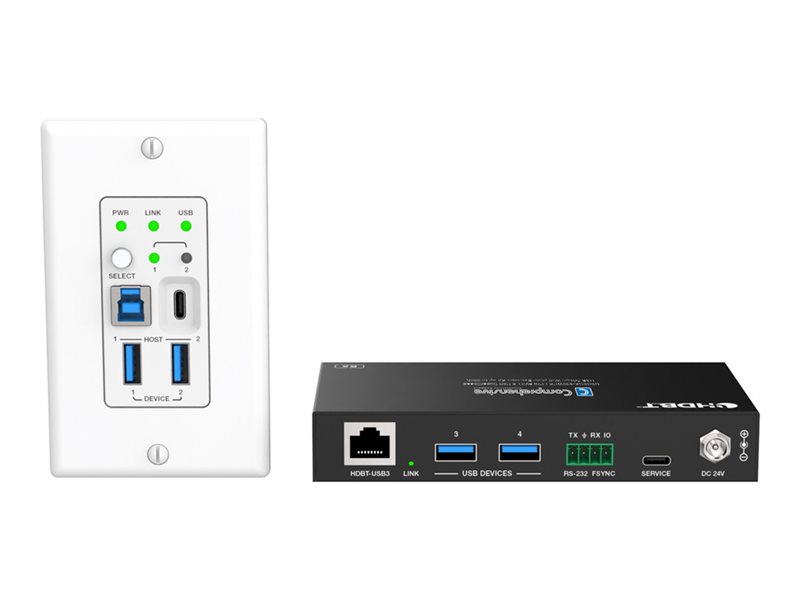

Comprehensive - Comprehensive Pro AV/IT Integrator GX Series
KVM / serial / USB / network extender - USB 3.2 Gen 1, RS-232, HDBaseT - over CAT 6a - up to 328 ft
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Comprehensive Pro AV/IT Integrator GX Series - KVM / serial / USB / network extender - USB 3.2 Gen 1, RS-232, HDBaseT |
| Device Type | KVM / serial / USB / network extender |
| Form Factor | Desktop / flush-mountable |
| Data Transfer Rate | 5 Gbps |
| Data Link Protocol | USB 3.2 Gen 1, RS-232, HDBaseT |
| Transmission Medium | CAT 6a |
| Max Transfer Distance | 328 ft |
| Power Over Ethernet (PoE) | PoC |
| Power | AC 100-240 V |
| System Requirements | Microsoft Windows, Apple MacOS, Linux, Google Chrome OS |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | KVM / serial / USB / network extender |
| Form Factor | Desktop / flush-mountable |
| Built-in Devices | USB hub |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x USB (transmitter input/host) - Type C female ¦ 1 x USB (transmitter input/host) - Type B female ¦ 2 x USB (transmitter output/device) - Type A female ¦ 1 x HDBaseT (transmitter output) - RJ-45 female ¦ 1 x RS-232 (control) - 3 pin Phoenix ¦ 1 x GPIO (control) - 1 pin Phoenix ¦ 1 x USB (control/service) - Type C ¦ 1 x HDBaseT (receiver input) - RJ-45 female ¦ 3 x USB (receiver output) - Type A female ¦ 1 x USB (receiver output) - Type C female ¦ 1 x RS-232 (control) - 3 pin Phoenix ¦ 1 x GPIO (control) - 1 pin Phoenix ¦ 1 x USB (control/service) - Type C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Power adapter, 4 mounting ears, 8 screws, 2 x 4-pin Phoenix connectors |
| Compliant Standards | Plug and Play, FCC, UL |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | USB 3.2 Gen 1, RS-232, HDBaseT |
| Data Transfer Rate | 5 Gbps |
| Max Transfer Distance | 328 ft |
| Features | Backwards compatibility, auto-switching, API support, RS-232 passthrough, firmware upgradable, FSYNC GPIO passthrough, isochronous data transfer support, bulk data transfer support, control data transfer support, interrupt data transfer support, metal housing, bi-directional power over cable (PoC) |
| Compliant Standards | USB 3.2 Gen 1 |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Microsoft Windows, Apple MacOS, Linux, Google Chrome OS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
